SH113ES Automatic condensation point tester
The SH113ES Automatic condensation point Tester is based on the national standard GB/T510 "Determination of Condensation Point of Petroleum Products". It adopts contemporary advanced technology, integrating mechanical, optical, electronic, and computer technology, and can automatically complete the measurement of the condensation point of petroleum products. This instrument uses photoelectric detection technology, glass tube automatic tilting method, and imported compressor refrigeration system to ensure that the required cooling depth is achieved.
The condensation point is the highest temperature of an oil product under specified test conditions when the test oil is loaded into a test tube and cooled to a level that does not move, expressed in degrees Celsius.
Instrument Features
● After upgrading, historical data can be stored for easy query; At the same time, it can be equipped with a U disk output function.
● Standard micro printer Automatic measurement Automatic printing
● If there is no personnel to operate after the test, set the automatic shutdown time of the refrigerator within 0-50min to avoid frequent startup of the compressor and prolong the service life of the instrument,
● Standard micro printer Automatic measurement Automatic thermal printing.
● Data memory: The memory of microcomputer instruments can be expanded to 16G.
★Remote upgrade: With TCP network transmission function, remote software upgrade can be performed later (optional)
★Data management: connectable to the LIMS system (optional)
Technical parameters and features
| Standard | GB/T510 |
| Human machine interface | 7-inch color LCD touch screen |
| Refrigeration method | fully enclosed high-efficiency refrigeration compressor |
| Detection method | Imported photoelectric switch detection |
| Number of test holes | double holes |
| Temp range | -70℃ ～ +30℃ |
| Cold bath temp range | -70℃ ～ RT |
| Sample measurement range | -55℃ ～ RT |
| Temp control accuracy | ＜ ±0.1℃ |
| Sample size | Place at the scale line of the test tube |
| Refrigeration medium | metal bath refrigeration |
| Printer | small thermal printer |
| Storage | 199 sets |
| Result output | U-disk |
| Output Format | CSV or Excel |
| Instrument size | 650 * 480 * 620mm |
| Instrument weight | 75kg |
| Package size | 690 * 520 * 660mm |
| Package weight | 80kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list of fully automatic Condensation point instrument
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Unit | |
| 2 | condensation point glass tube | 2 | Piece | Including inner tube and outer tube |
| 3 | condensation point thermometer | 2 | Piece | |
| 4 | Power cord | 1 | Root | |
| 5 | Fuse tube | 1 | Piece | |
| 6 | Instruction manual | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate warranty card | 1 | Copy | |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Product Tags:
|
|

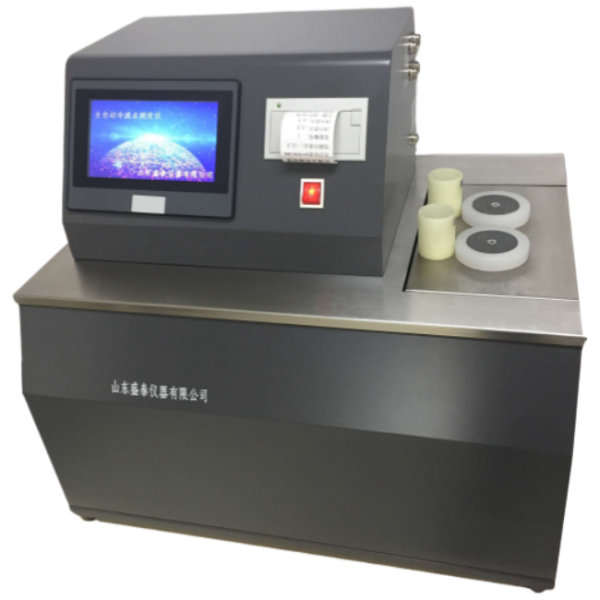

2 Holes Automatic Condensation Point Tester -70℃ ～ +30℃ U-Disk Output GB/T 510 Images
|
