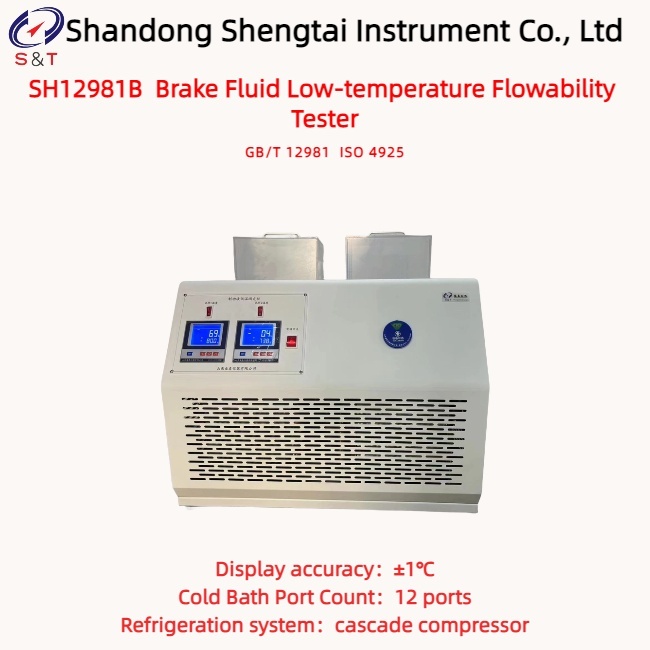

SH12981B Brake Fluid Low-temperature Flowability Tester
Standard: GB/T 12981 ISO 4925
SH12981B Brake Fluid Low-temperature Flowability Tester is designed and manufactured strictly in accordance with the Appendix G standard in GB 12981, and fully complies with the determination of low-temperature flowability, water solubility, and compatibility of brake fluid.
Performance Characteristics
● The instrument employs a compressor for cooling, featuring rapid cooling speed and long service life.
● The display adopts a small LCD screen with excellent temperature control stability.
● Equipped with low-temperature flowability test tubes for conducting low-temperature flowability experiments, and with centrifuge tubes for performing solubility and compatibility low-temperature tests.
Technical Parameters
| Cold bath temp control |
RT ～ -60℃ |
| Refrigeration medium |
metal bath |
| Cold Bath Port Count |
12 ports |
| Display accuracy |
±1℃ |
| Refrigeration system |
cascade compressor |
| Test tube volume |
125ml |
| Ambient temperature |
≤30℃ |
| Relative humidity |
≤85% |
| Instrument dimensions |
670*515*520 mm |
| Instrument weight |
72kg |
| Packaging dimensions |
760*560*610 mm |
| Packaging weight |
85kg wooden case |
| Operating Power Supply |
AC220V ±10% 50Hz |
Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. If the instrument is updated, there may be slight changes, and no further notice will be provided.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Package list
| S/N |
Name |
Quantity |
Unit |
Remarks |
| 1 |
Host |
1 |
Set |
|
| 2 |
Glass tube |
10 |
Piece |
|
| 3 |
Power cable |
1 |
Piece |
|
| 4 |
Fuse tube |
1 |
Piece |
Built-in |
| 5 |
Instruction manual |
1 |
Copy |
|
| 6 |
Packing list |
1 |
Copy |
|
| 7 |
Certificate warranty card |
1 |
Copy |
|
