SK-10 Trace moisture meter
Standard: GBT 11133 ASTM D0304 ASTM D1533 DL/T 915-05 GB 5832
Automatic Trace Moisture Tester
Trace Moisture Content Meter for Petroleum Products
Trace Moisture Meter ASTM D1744
Karl Fischer Trace Moisture Meter for Oils
Automatic Trace Moisture Meter Karl Fischer Moisture Meter
Karl Fischer Trace Moisture Meter for Various Oils

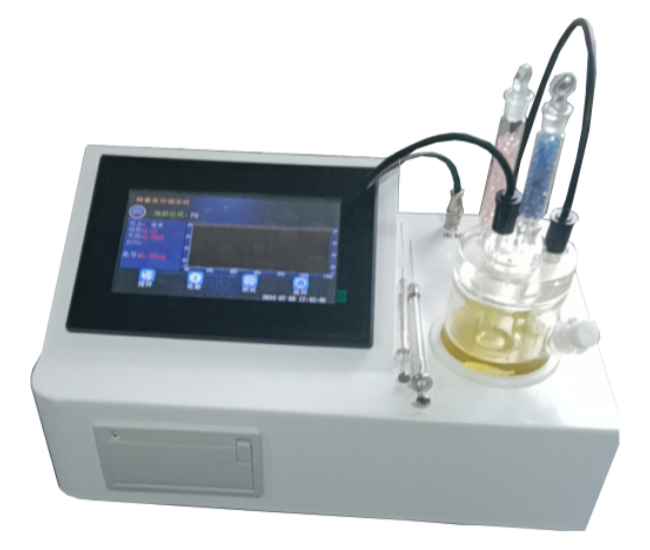

SK-10 micro water content analyzer operates on the Coulometric Karl Fischer titration principle and employs microcomputer automatic control. Compared to advanced domestic and international counterparts, it boasts advantages such as high sensitivity, rapid electrolysis, short equilibration time, accurate blank correction, and reliable analytical results. It serves as a high-quality analytical instrument for industries including petroleum, chemical, power, environmental protection, and scientific research.
The instrument employs a 32-bit embedded microprocessor as the main control core, equipped with a miniaturized operating system and a single-CPU design. The electrolytic cell features a new waterproof sealing design, complying with the standards GBT 11133, ASTM D 0304, and ASTM D1533.
DL/T 915-05, GB 5832-1986
Technical specifications:
| Display Mode |
Color Touchscreen Display |
| Titration method |
Microcomputer-controlled potentiometric titration |
| Output method |
Automatically calculated, can output in ug, PPM, and % |
| Measurement range |
0.00001% ～ 100% or 0.1ppm ～ one million ppm (1ppm=0.0001%) |
| Resolution |
0.1ug |
| Electrolysis control |
Automatic electrolysis current tracking control (maximum 400mA) |
| Sensitivity |
0.1ug ～ 100g, no more than 2%, and 0.3% for 1mg and above (excluding injection error) |
| Printer |
Thermal Printer |
| Power Supply |
AC 220V±10% 50Hz±10% |
| Power |
60VA |
| Operating Ambient Temperature |
5～40℃ |
| Ambient operating temp |
≤90% |
| External dimensions |
380*350*390mm |
| Weight |
18kg |
Required consumables: Karl Fischer reagent. The instrument comes with a set of reagents, which can be replenished or replaced as needed.
Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no separate notice will be provided.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N |
Name |
Quantity |
Unit |
Remarks |
| 1 |
Host |
1 |
Set |
|
| 2 |
Electrolyte |
1 |
Bottle |
500ml |
| 3 |
Electrolytic cell |
1 |
Set |
|
| 4 |
Stir bar |
1 |
Piece |
|
| 5 |
Silicone pad |
10 |
Piece |
|
| 6 |
Silica gel |
1 |
Piece |
|
| 7 |
Vacuum grease |
1 |
Piece |
|
| 8 |
1ml sampler |
1 |
Piece |
|
| 9 |
25ul microsampler |
1 |
Piece |
|
| 10 |
Closed needle |
1 |
Piece |
|
| 11 |
Power cord |
1 |
Piece |
|
| 12 |
Instructions |
1 |
Copy |
|
| 13 |
Certificate of Conformity Warranty Card |
1 |
Copy |
|
